PBH Transmission Cooler Kit

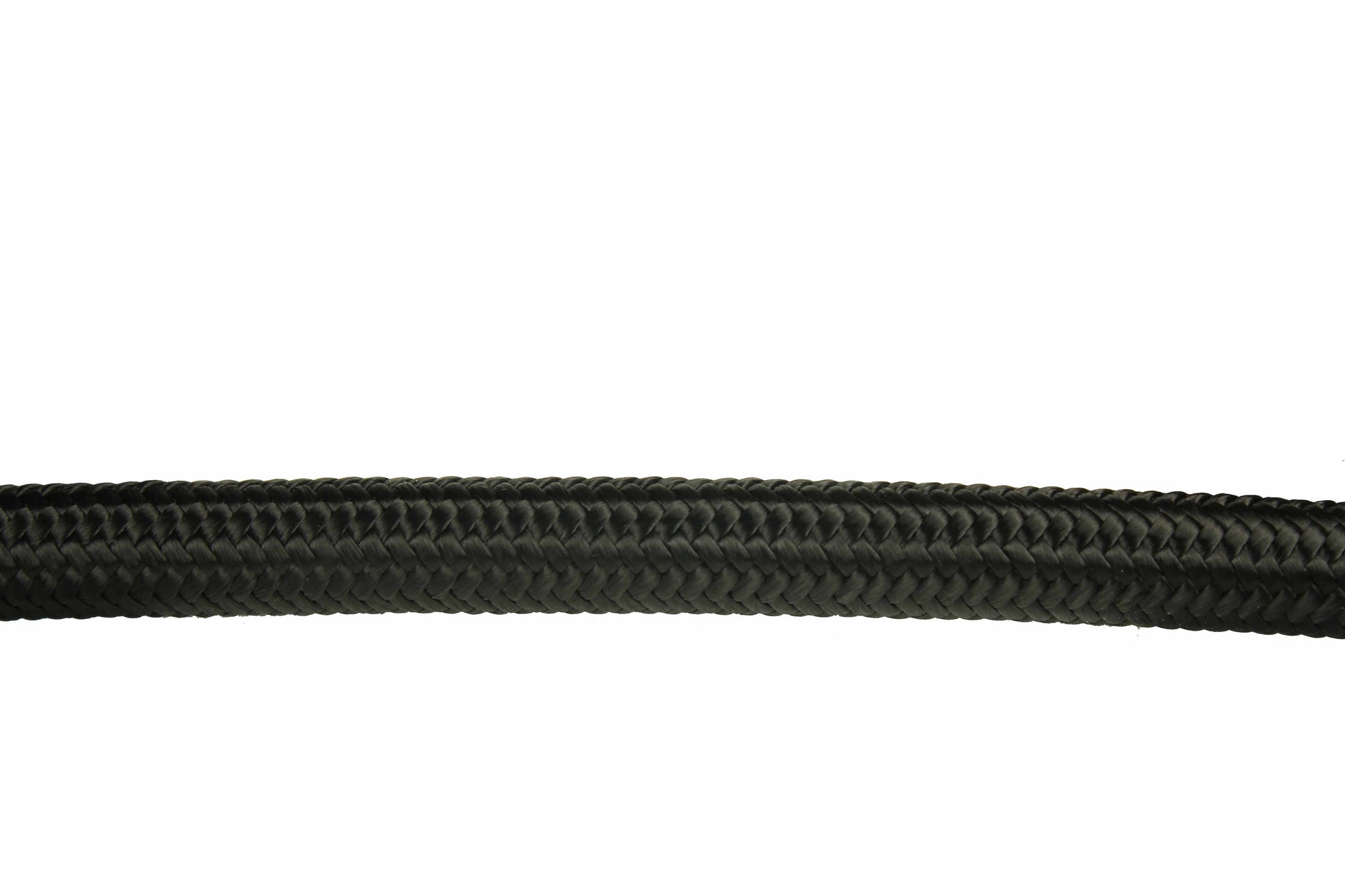

Now available from PBH is a complete transmission cooler kit designed to work hand in hand with our 6R80 transmission fittings, perfect for most 6R80 or 10R80 swaps. The kit consists of a fanned transmission cooler, -8an fittings, and 20ft of -8an line. If you already have transmission adaptor fittings be sure to select the correct kit based on your outlet fitting orientation.

We also offer a complete transmission cooler kit that includes our transmission adaptor fittings, simply select the kit you need from the options below.

The Cooler:

• Mounts anywhere space permits
• Electric fan supplies optimum airflow
• Dramatically extends engine and transmission life
• High efficiency Stacked Plate cooler
• Clear anodized aluminum shroud
• 500 CFM reversible Tornado electric fan
• -8AN inlet size
• 22,000 BTU’s Per Hour

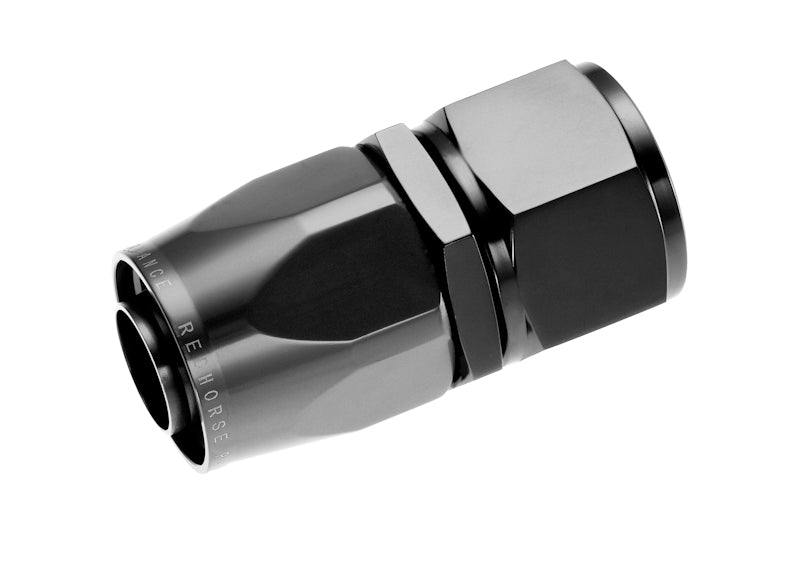

• Cooler assembly includes fan mounted cooler, aluminum -8AN fittings and two -8AN x 1/2″ hose barb fittings

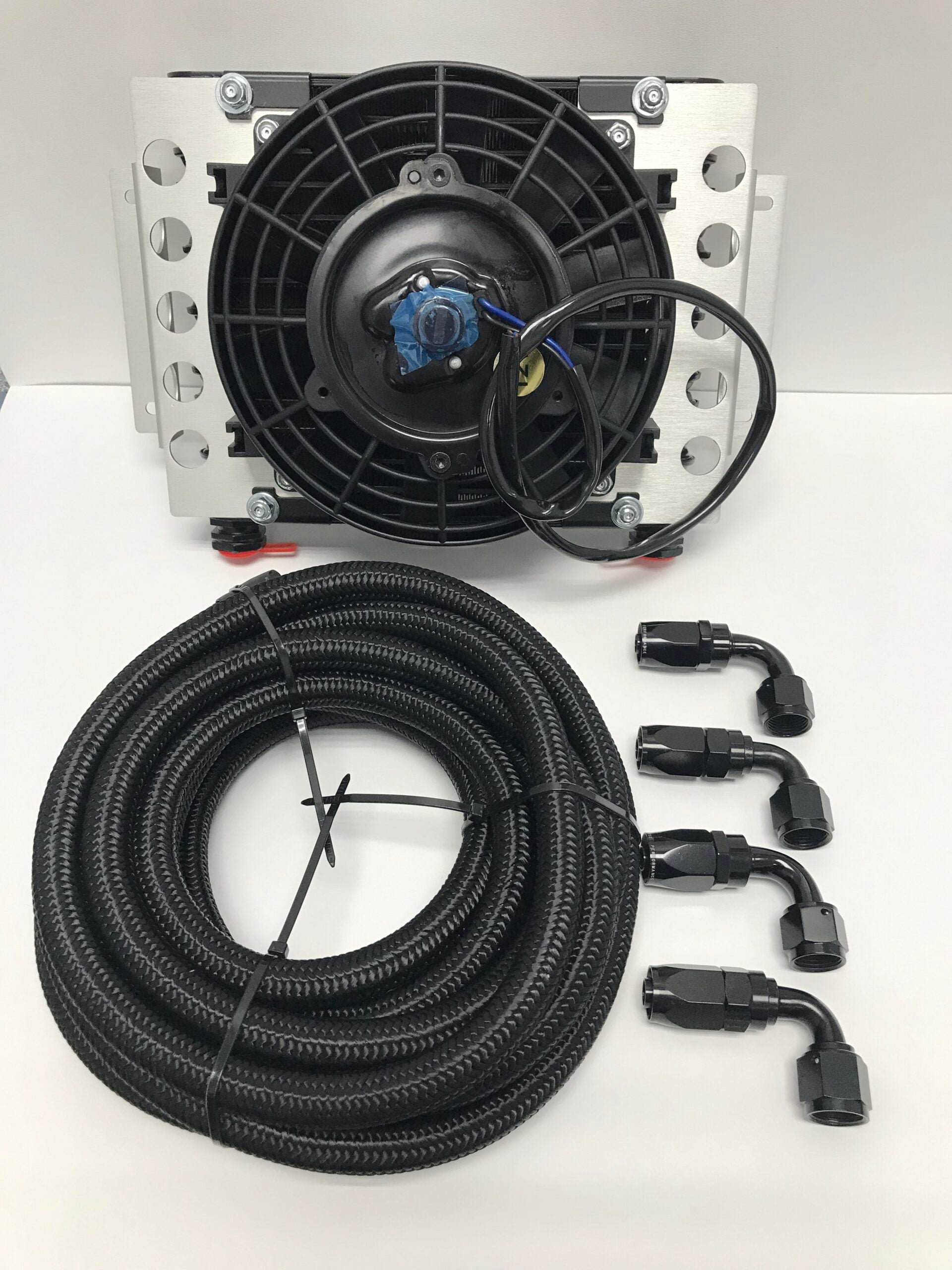

COMPATABLE WITH -8AN 90 DEGREE TRANMISSION FITTINGS **THIS ITEM IS BUILD TO ORDER**

Does not include and is designed to be used with PBH-620 V2 -8AN 90 degree style transmission cooler adaptor fittings.

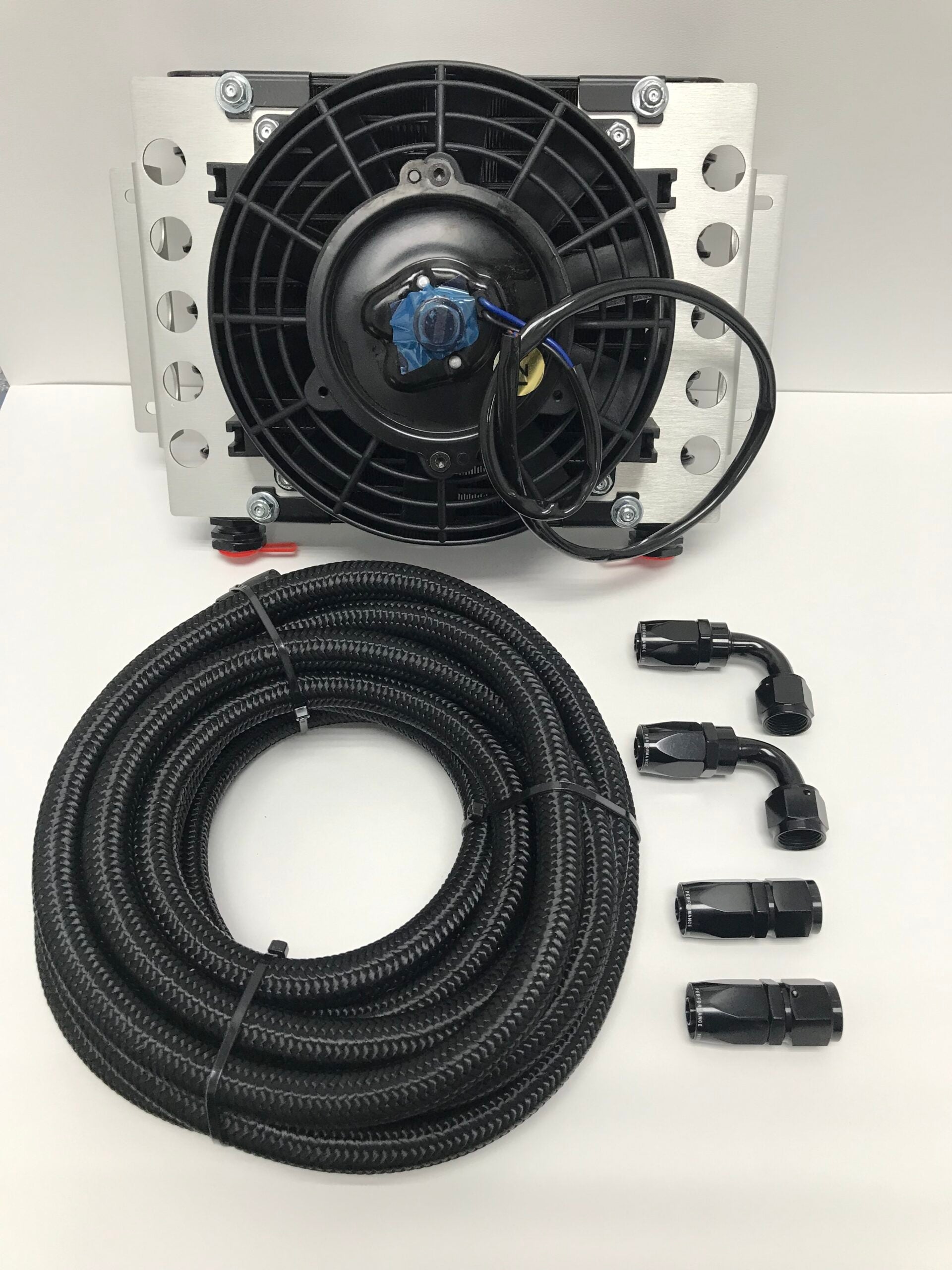

COMPATIBLE WITH -8AN STRAIGHT TRANSMISSION FITTINGS

Does not include and is designed to be used with PBH-620 V2 -8AN straight style transmission cooler adaptor fittings.

COMPLETE KIT WITH TRANSMISSION FITTING
