PBH Gen 2 Manual Control Pack for 2015-17 Coyote Swaps

$1,999.99 USD

Sale Sold out

Engine Firing Order F-150 Firing Order Mustang Firing Order

Quantity

Our Gen 2 manual Control Pack is made specifically for 15-17 Coyote swap applications and is available for either the Mustang or F-150 engine firing order configuration. The PBH Gen 2 control pack kit was designed to help put the MT-82, TR-6060, T-56 6-speed manual transmissions, or any non-electronically controlled automatic behind any 2015-2017 Coyote engine swapped build. Using a factory PCM with a custom flash we can control the engine and retain OEM drivability with virtually any transmission other than the 6R80.

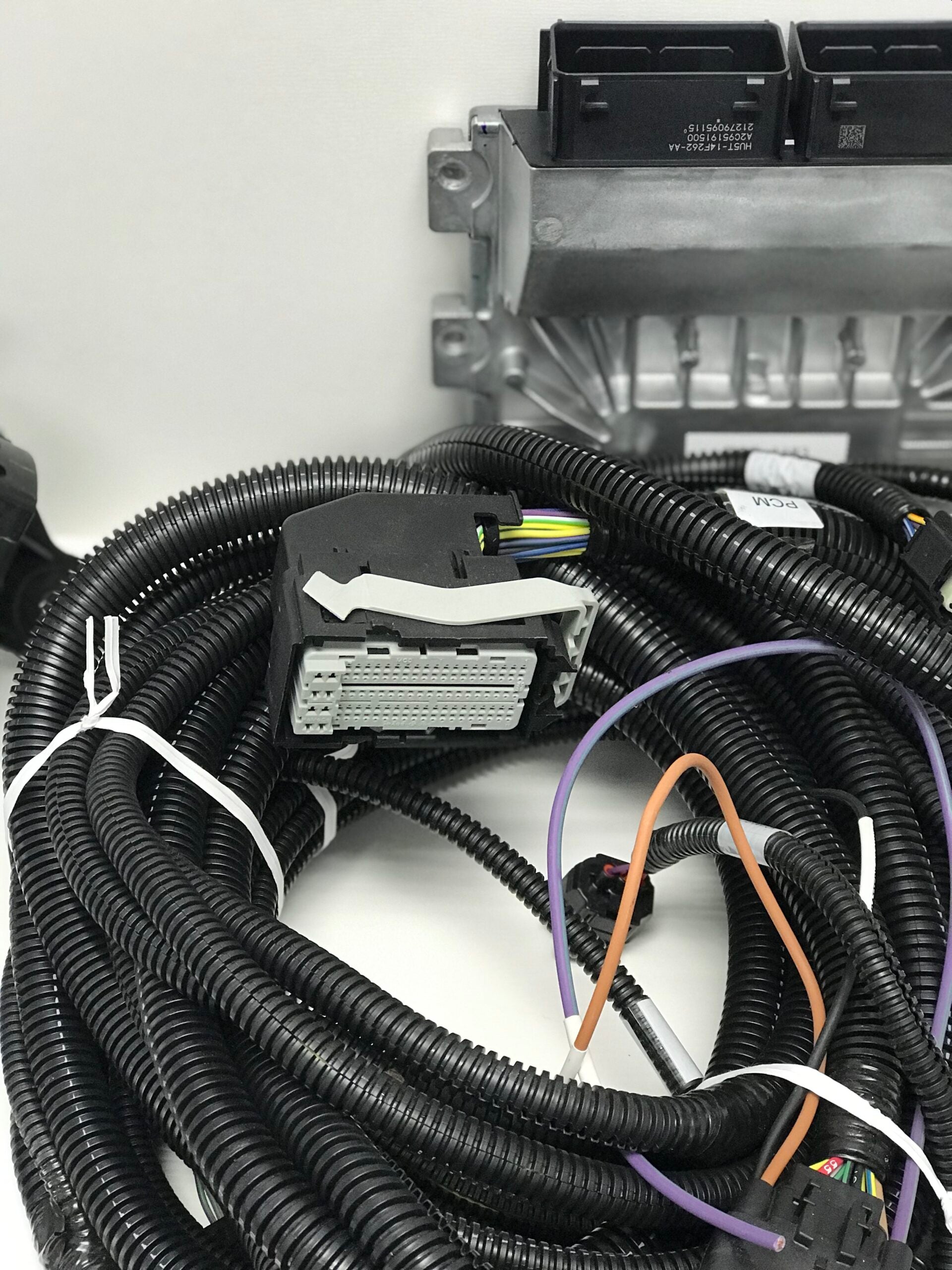

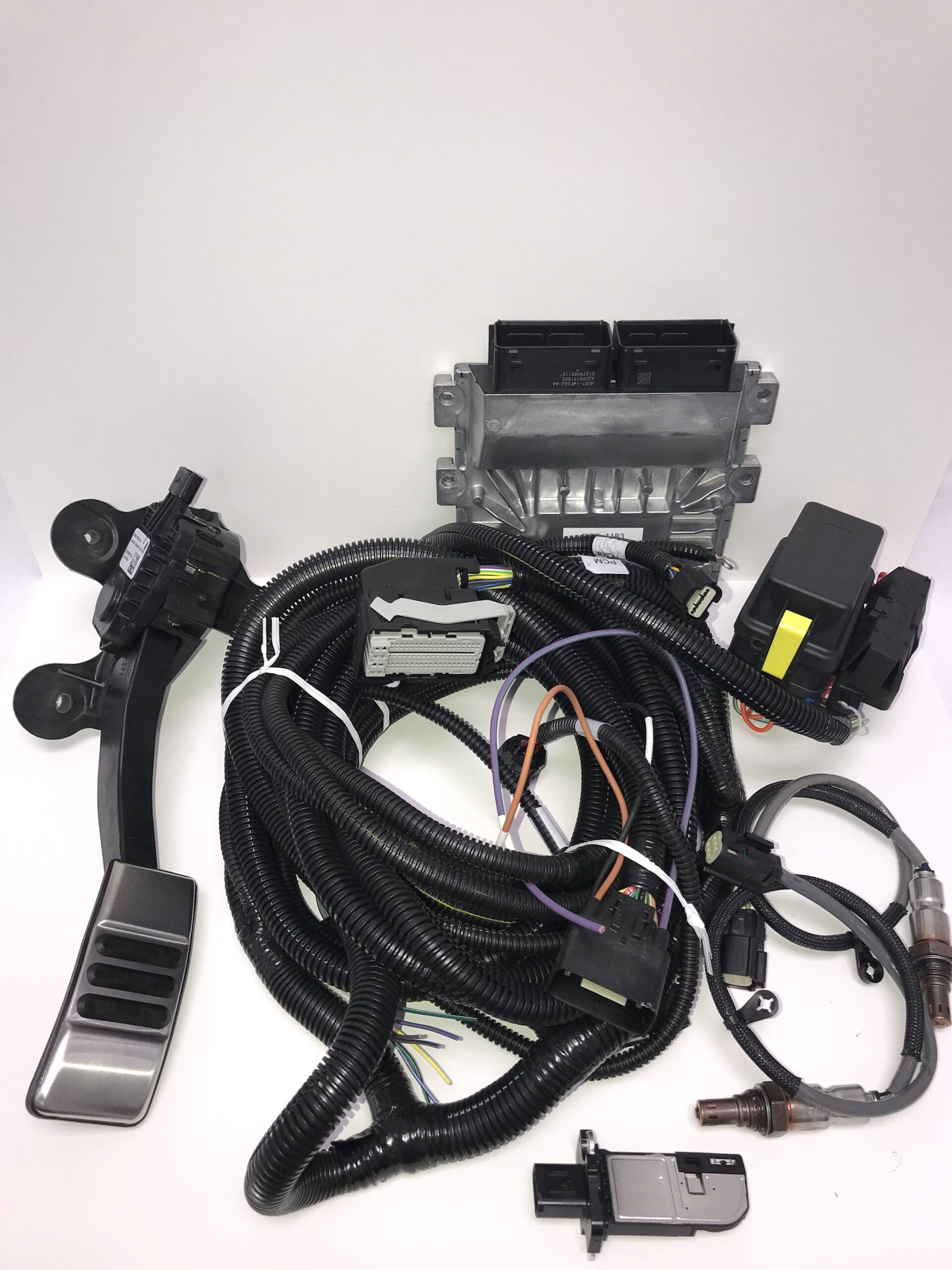

In this pack you will receive the PCM, PBH 6R80 body harness, both O2 sensors, gas pedal, fuse box, mass air meter, and detailed instructions.

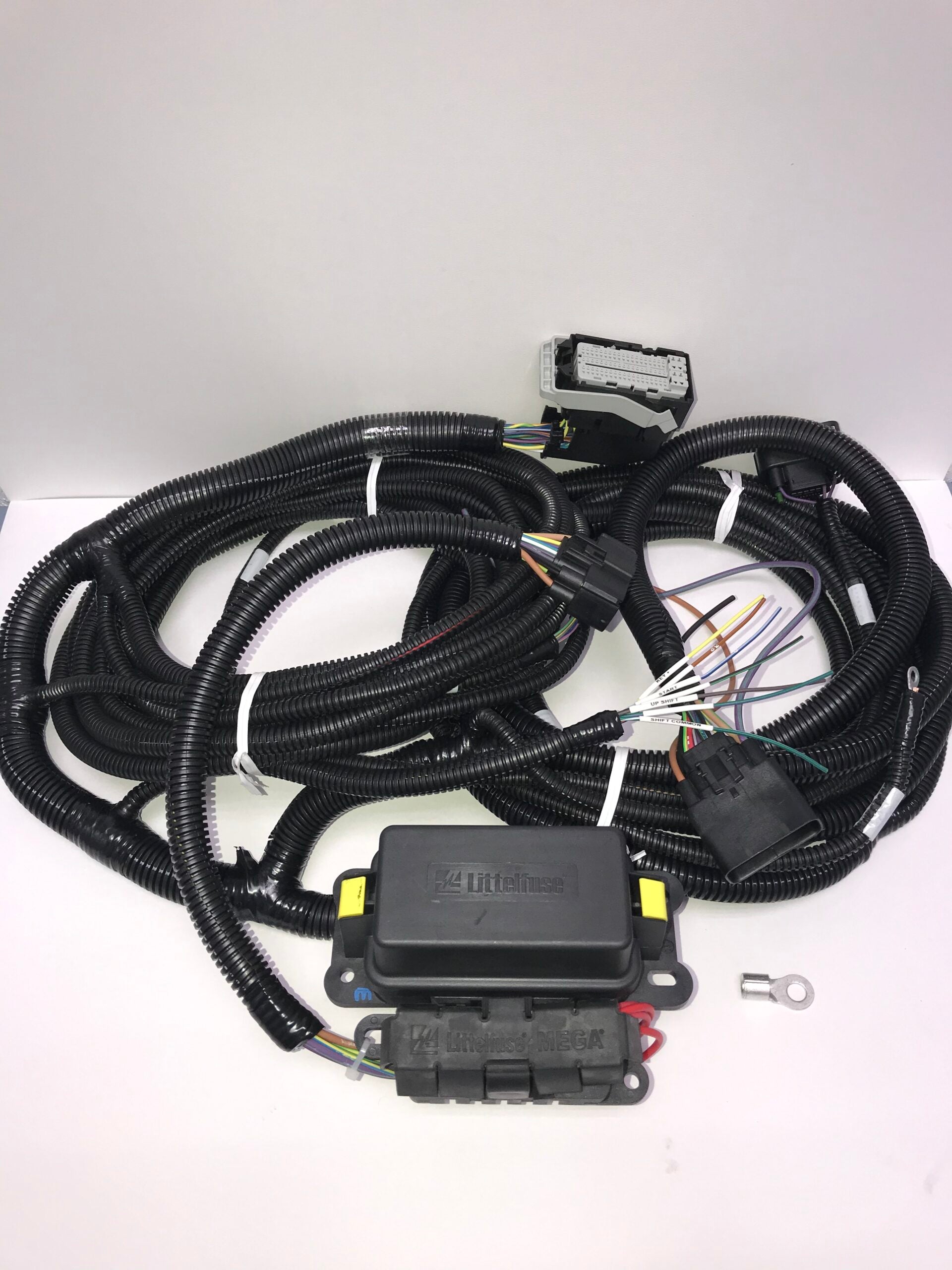

The PBH body harness will give installers and builders the ability to not only use a transmission of their choice (except 6R80), but to use it to full factory potential. We also left wiring leads for anyone who would like to add electric steering, and oil pressure sender. You also get trigger wires for fuel pump and cooling fans so the factory computer can control them as well. The fuse block is detachable to make wiring installation easier.

The PCM supplied in the kit is a manual GT Mustang unit. The computer will come with a custom flash and will be configured for either Mustang or F-150 engine firing order to allow start up and custom tuning.

If you’re running the F-150 engine you will need the PBH modified engine harness and they can be found here.
