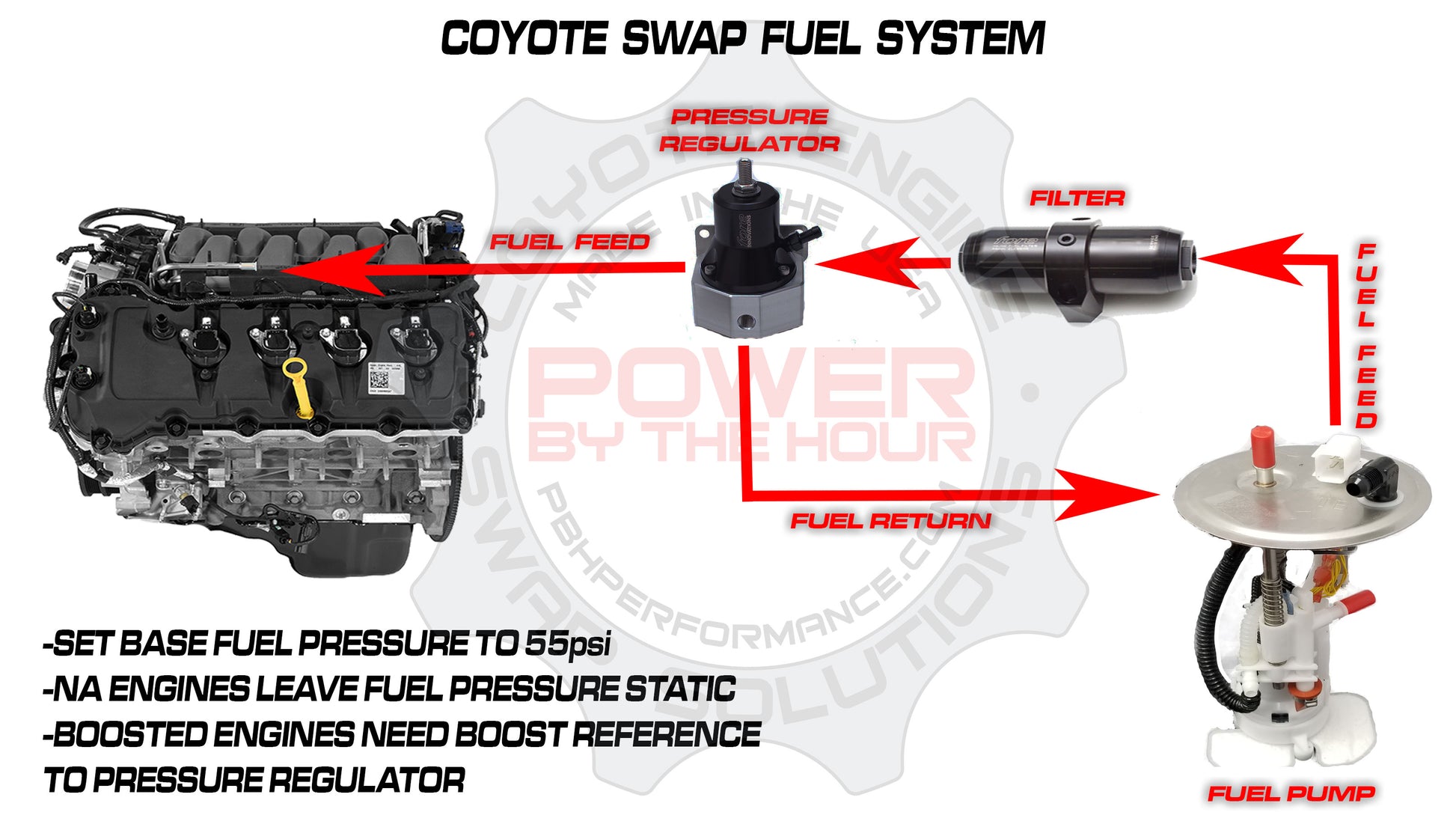

The Coyote swap requires a return style fuel system to generate the 58psi required and do it consistently to mimic the return less system from the factory. If you already have a fuel pump and tank but just need the lines, regulator, and filter we have a kit for you that will let you plumb it all to the stock fuel rails. The Fore Innovations Coyote Swap Universal Fuel Line Kit includes the fuel filter, fuel pressure regulator, 40ft of fuel line, -6an fittings, and adapter fitting for the stock fuel rail. Take the guess work out of the build and pick up this high quality kit made in the USA to supply the fuel to your coyote.

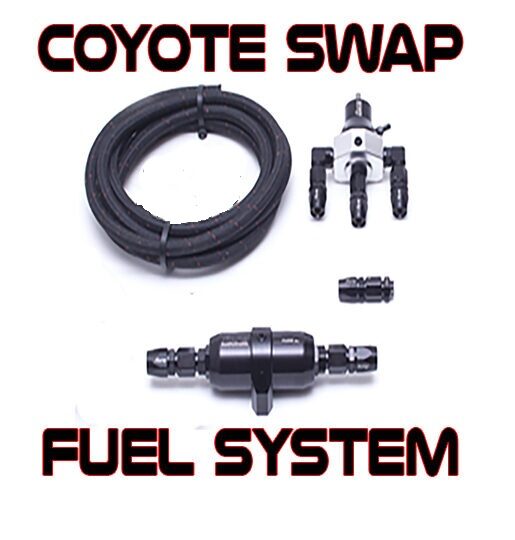

Included in this kit:
8 x -6an straight fittings
2 x -6an 90 degree fittings

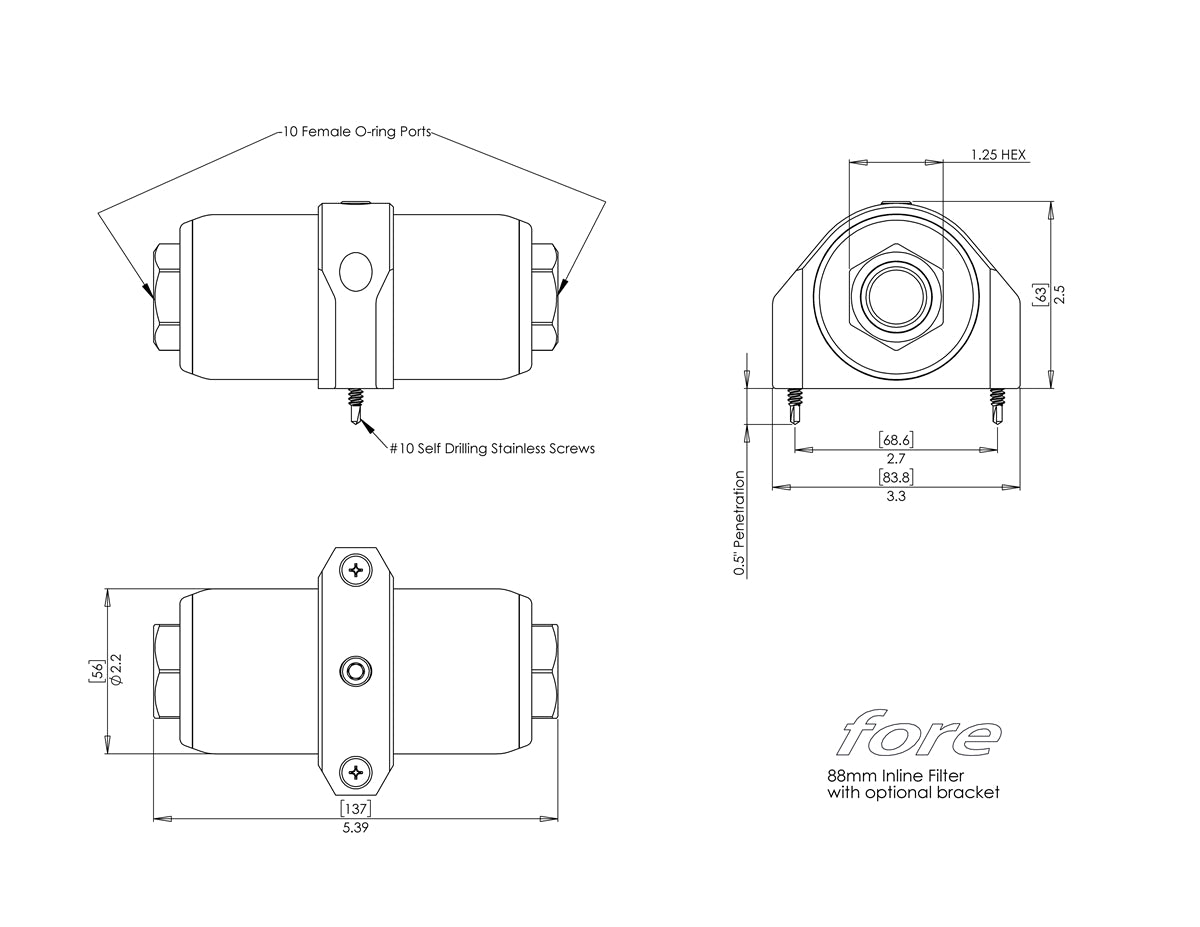

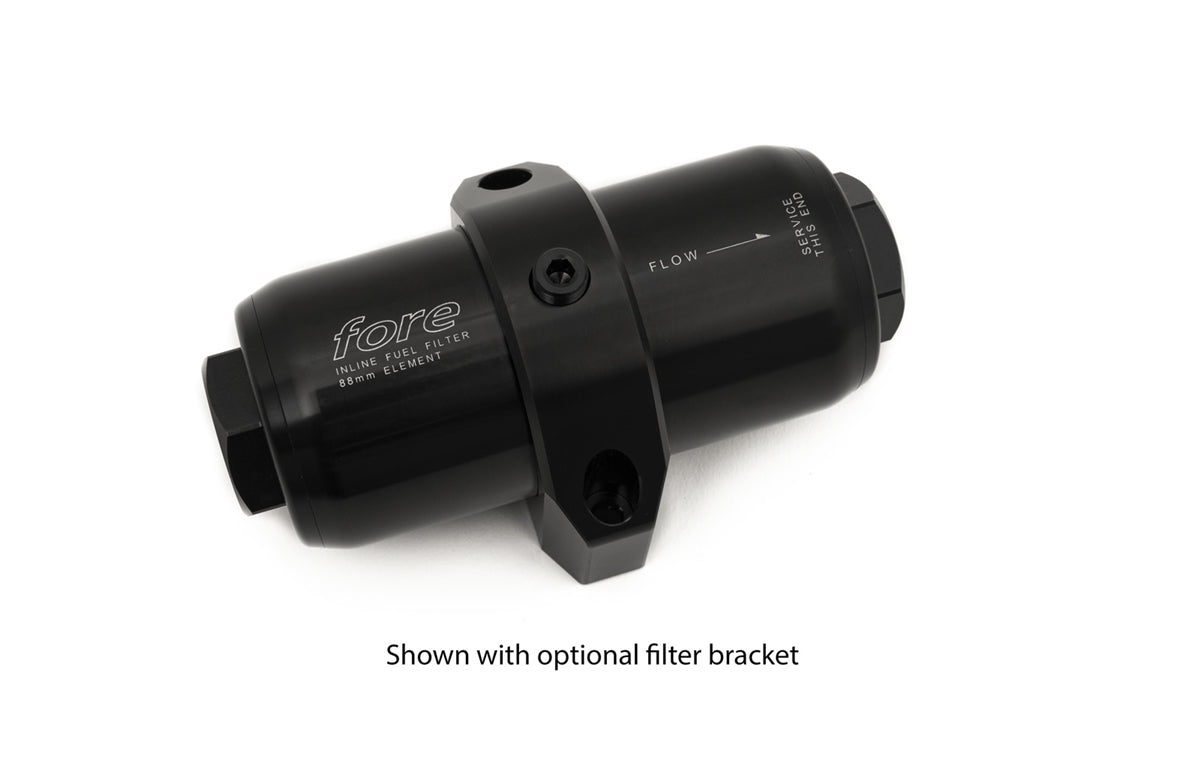

1 x fuel filter housing with 10 micron stainless filter and bracket

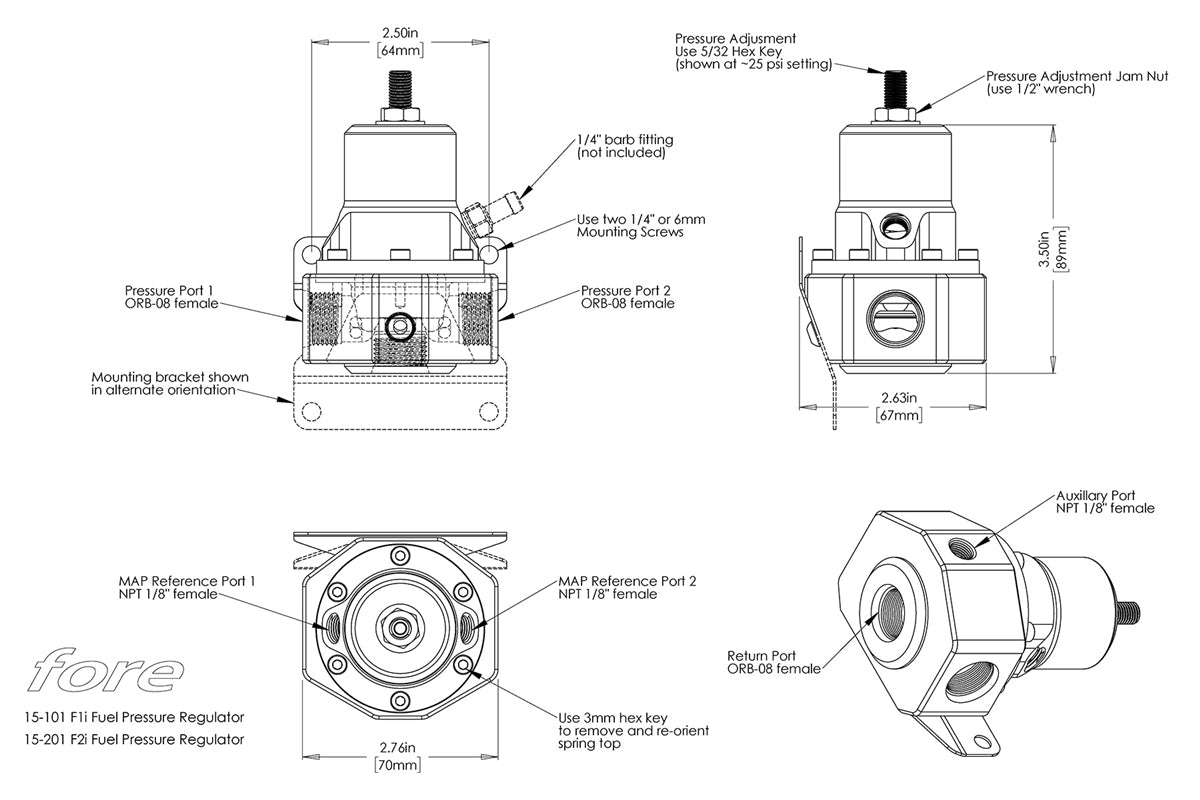

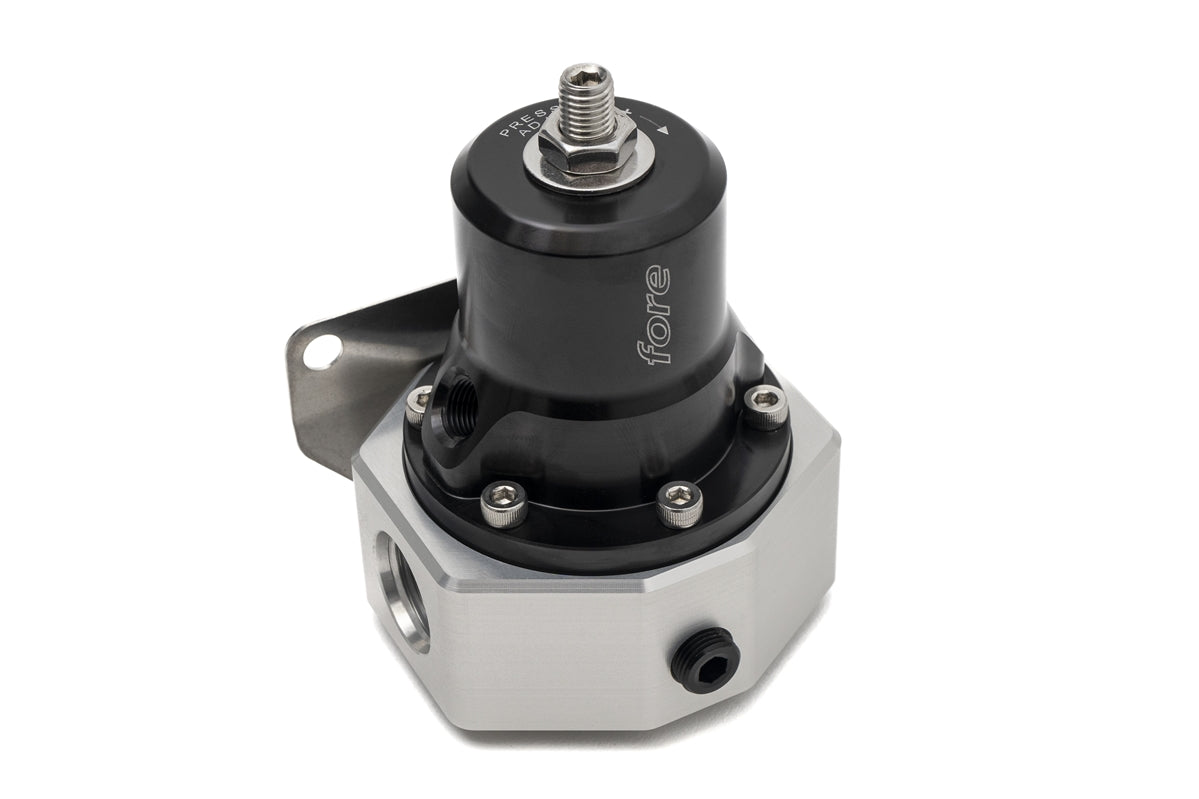

1 x fuel pressure regulator, bracket, and gauge
40ft of no odor and low nvh 235 series hose that is E85 compatible
