Coyote Swap Oil Filter Relocation Kit

Everything you need for your Coyote Oiling system in one convenient kit!

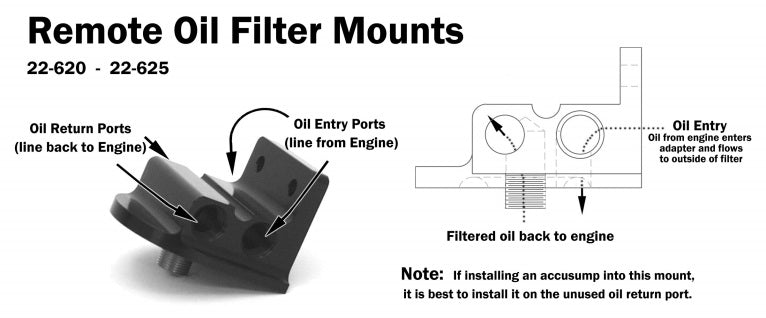

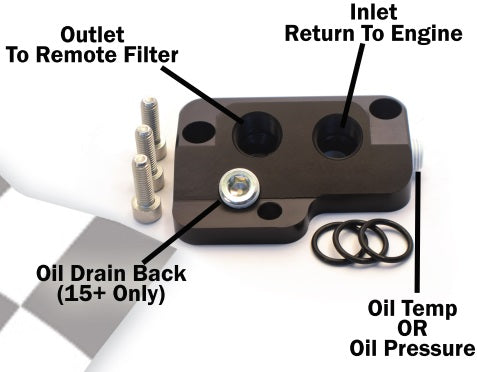

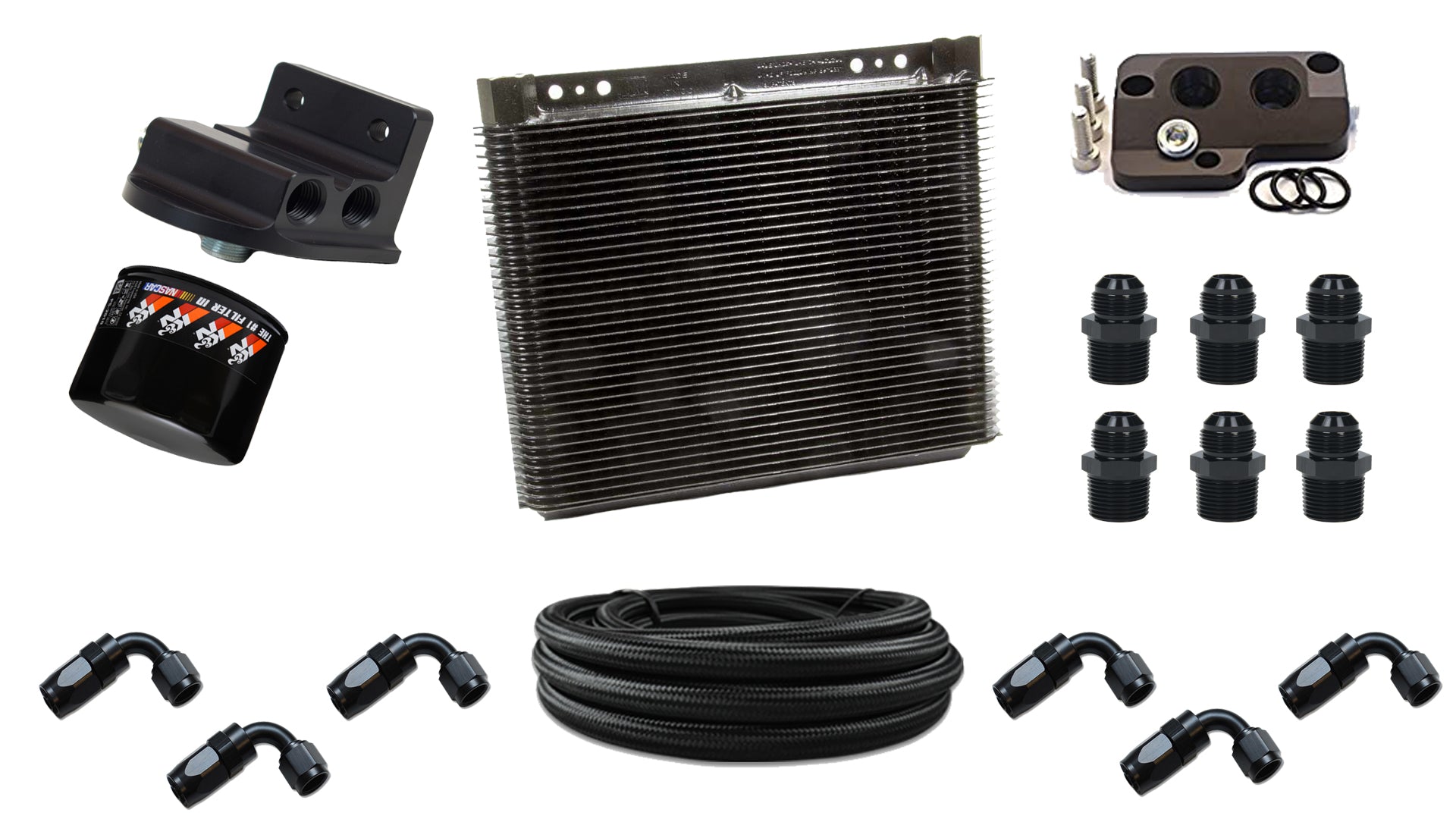

Many times the factory oil filter housing and oil cooler get in the way of suspension components during engine swaps. The answer to these issues is to delete the oil cooler and relocate the oil filter with a remote system. Typically you would spend time trying to find all the right pieces individually. PBH has done the homework for you and put together a high quality kit that will take care of both needs. Not only do we relocate the oil filter by removing the factory oil filter housing and replace it with a engine block adapter; we also provide the fittings and lines to accommodate a traditional oil cooler that can be placed in front of the radiator. The Block adapter has provisions for your factory oil pressure sender to keep it close to oem as possible. You get 10 feet of -10an line with six 90 degree -10an fittings for all connection points. 1/2npt to -10an adapters are also included. An 8.5″ x 11″ x 1.5″ oil cooler is included in the kit to handle all cooling of the oiling system in place of the oem core. The oil filter relocation housing is 22mm so you can use a stock coyote oil filter for your oil changes. PBH includes a brand new filter with the kit as well.

If your looking to relocate your oil filter and do not plan on running a cooler, just select the option to omit the cooler from the kit. We will supply everything you need to move the oem filter to just about anywhere you want in the engine bay. We will include the same fittings, hoses, block adapters, filter, and housing in the complete kit, just without the cooler and its needed fittings.
